PRODUCT DETAIL
6S fast splicing, 16S fast heating
5000 times electrode service life
Average splice loss 0.01dB
4.3 inch LCD color display
7800mAh battery, 400 cycles of splicing and heating
Small size, easy to carry and transport
Real-time discharge correction, stable splicing accuracy
Store 10000 sets of splicing results and 2000 sets of images
USB interface, convenient for data download and software update
Silicone protective cover, can effectively waterproof, anti-fall, anti-vibration

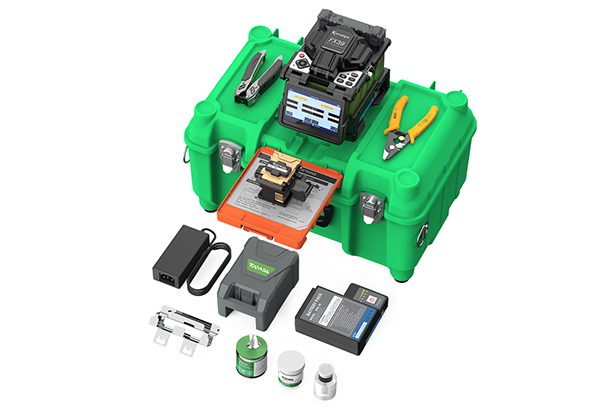

Packing list：
FX39 Fusion Splicer*1、TAWAA FC-30 Fiber Cleaver*1、Carry Case*1、Cleaning cools*1、Charger*1
Cleaning Wipes*1、Strippers*1、Tawaa Catalog*1
specification
| Item | Details |
| Applicable fiber type | SM (ITU-T G.652&G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) |
| Fiber type | 0.25-3.0mm leather optical cable |
| Fiber diameter | Cladding diameter: 80-150μm Coating diameter: 100~1000μm |
| Cutting length | 8-16mm |
| Splicing loss | SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB |
| Splicing mode | Maximum 128 groups |
| Splicing time | 6s |
| Heating time | 16 seconds (SM G652 250um 40mm heat shrink tube, quick mode) User adjustable |
| Applicable heat shrinkable | 20mm, 30mm, 40mm, 50mm, 60mm |
| Battery capacity | 7800mAh Lithium battery Each cycle supports 450 times splicing and heating |
| Electrode life | About 5000 times discharges |
| Result storage | 10000 sets of splice data, or 2000 sets of splice images |
| Operating conditions | Altitude: 0~5000 meters Relative humidity: 0~95% Temperature: -20℃~50℃ Maximum wind speed: 15m/s |
| Display screen | 4.3 inches high-definition LCD display |
| Weight | 1.72kg (Without battery) / 2.25kg (With battery) |
| Size | 158(H)×132(W)×157(D) mm (including rubber bumper) |
