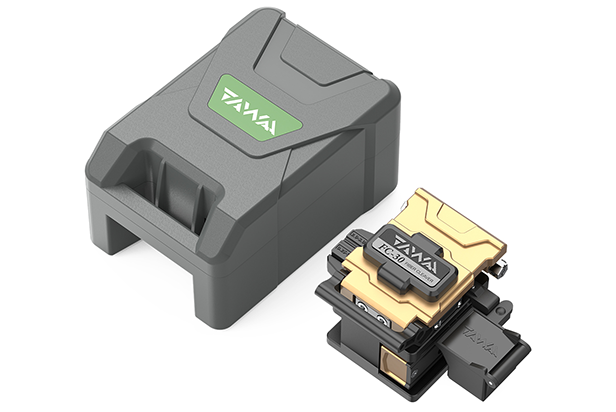

Optical FC-30 Fiber Cleaver

Handheld Fiber Optic Cleaver TAWAA FC-30 Fiber Optic Cleaver Fiber Optic Cleaver 3 in 1 Universal Holder 48000 Times Blade Life

TAWAA FC-30 is a traditional benchtop cleaver. It is simple and easy to use. Equipped with a fiber corner collector. Can use up to 250um. 900um, 3.0mm fiber optic cables and flat cables. Work efficiency and common 0.5 degree high-precision cutting angle. Blade provides more than 48,000 types of fiber cleavage. Easy and simple blade position selection.

Onlinse Service

Prve

FEEDBACK

Please fill in the form below and our sales team will contact you as soon as possible.

* Name
* Phone
* E-mail
* Company
* Describe
* Code

PRODUCT DETAIL

The blade life is up to 48,000 times

General cutting angle ≤ 0.5 degrees

Tungsten steel blade, wear-resistant, high hardness, corrosion-resistant.

Traditional desktop design,

Double clamp design, suitable for various optical fibers from 250 to 3.0 mm, simple and easy to use.

High-precision CNC processing, excellent texture.

specification:

Item	Details
Fiber material	single fiber
Cover diameter	125μm
Cutting length	Single fiber: 8~20mm / Ribbon fiber: 10mm
Applicable optical cables	Single fiber: 250μm, 900μm, 3.0mm Flat cable / ribbon optical fiber: 2~12 cores
Standard cutting angle	≤0.5°
Typical blade life	48,000 fibers Cleaver
Side cutting collector	Pre-installed
Side cutting type	Manual
Auto Return	Pre-installed
Dimensions/weight	63(W)×77(D)×63(H) mm / 335g
