PRODUCT DETAIL

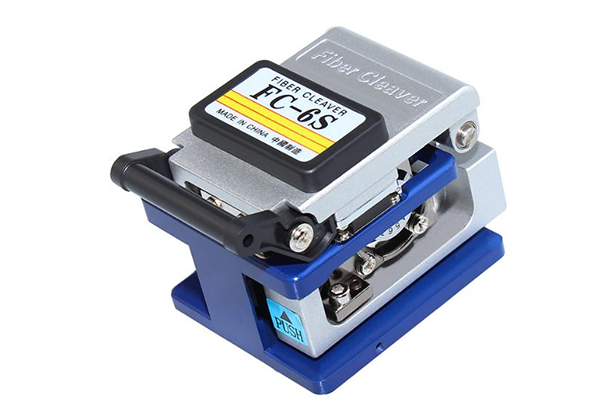

High-Precision Fiber Cleaver Is a Tool Suitable for Precision Cutting of Single-Core Optical Fibers. This Cleaver Is Suitable for Both 250μm Coated Optical Fibers.
Also Suitable for 900μm Coated Optical Fiber.
Cutting Requires No Special Skills.
Cut Length: 10-16mm for 0.9mm Optical Fiber; 9-16mm for 0.25mm Optical Fiber
Fiber Package Diameter: 125μm
Coating Outer Diameter: 0.25 & 0.9mm
Dimensions: 63W × 76D × 63H (mm)
specification
| Item | Details |
| Fiber Type | Replacement of monofilament and ribbon fibers |
| Outercoat Dia | 0.25-0.9 micron |
| Cover diameter | 125μm |
| Cutting length | 5-30mm |
| Applicable optical cables | Single fiber: 250μm, 900μm, 3.0mm Flat cable / ribbon optical fiber: 2~12 cores |
| Standard cutting angle | 1° |
| Typical blade life | 0.5°：15000 times 1°：36000 times Ribbon fibers：3000 times |
| Mode | Automatic |
| Side cutting type | Manual |
| Auto Return | Pre-installed |
| Dimensions/weight | 60×68×63 mm / 330g |
