PRODUCT DETAIL
Working platform designfor aerial work：EX39 Mini has a high adaptability to operation environment,which can adapt to aerial operations aslo can be competent for any ground works.
Humanized machine design:Small size compact &light design；Easy to carry and operate at any time.
High Expansibility fiber optic cleaver Komshine operating platform (Optional)
Innovatively no need tools to replace electrodes
Auto Splice & Auto Heat Function
3-IN-I Fiber Holder.Fiber holder suits different kinds fiber.Suitable for flat fiber, jump fiber, pig tail fiber,bare fiber, save more time and labor
Applicable to multiple projects:FTTx Fiber to the home、Security monitoring、Installation and maintenance construction

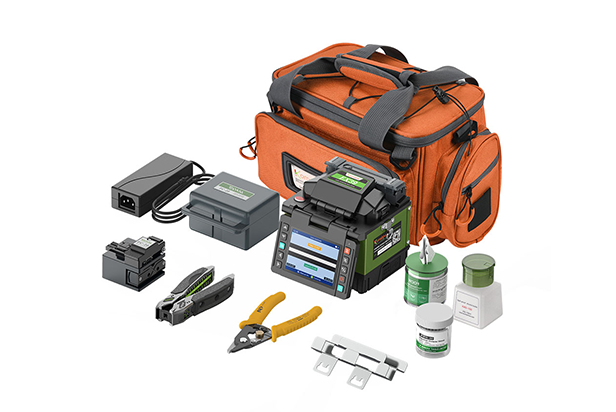

Packing list：
EX39 Fusion Splicer*1、FC-30 Fiber Cleaver*1、Carry Case*1、Cleaning cools*1、Charger*1
Cleaning Wipes*1、Strippers*1、Tawaa Catalog*1
specification:
| Item | Details |
| Applicable fiber type | SM (ITU-T G.652&G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) |
| Fiber type | 0.256-3.0mm leather optical cable |
| Fiber diameter | Cladding diameter: 80-150μm Coating diameter: 100~1000μm |
| Cutting length | 8-16mm |
| Splicing loss | SM: 0.03dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.03dB |
| Splicing mode | Maximum 128 groups |
| Splicing time | 8-10s |
| Heating time | 18 seconds (SM G652 250um 40mm heat shrink tube, quick mode) User adjustable |
| Applicable heat shrinkable | 20mm, 30mm, 40mm, 50mm, 60mm |
| Battery capacity | 4000mAh Lithium battery Each cycle supports 120 times splicing and heating |
| Electrode life | 5000 arcs, can be extended by using an electrode grinder |
| Result storage | The last 10,000 splice records and 2,000 result images |
| Operating conditions | Altitude: 0~5000 meters Relative humidity: 0~95% Temperature: -20℃~50℃ Maximum wind speed: 15m/s |
| Display screen | 3.5” color high resolution (800×480) display |
| Weight | 1.06kg without battery / 1.35kg with battery |
| Size | 130(H)×113(W)×126(D) mm |
