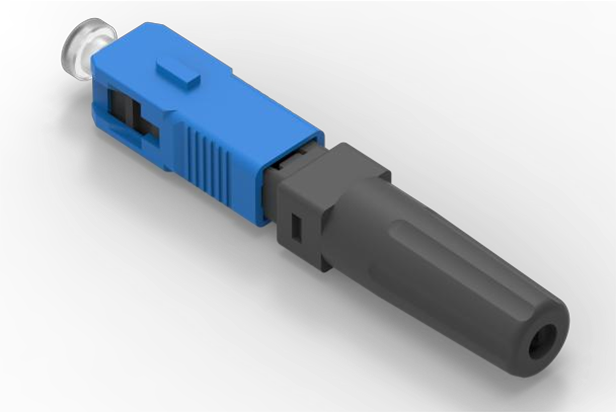

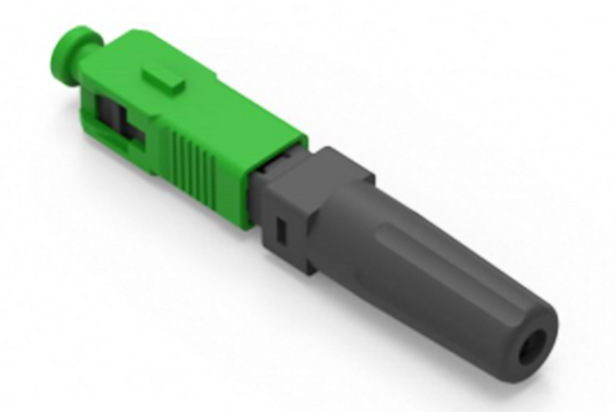

Pre-buried optical fiber, factory polished, built-in optical fiber refractive index matching liquid;
Metal V-groove, high alignment accuracy and reliability, excellent performance;
Product length: 56.6mm;
Applicable optical cable: Applicable to 2.0*3.0mm butterfly optical cable;
Applicable optical fiber: Applicable to G657A1, A2, B3 optical fiber, optical fiber diameter 125um, cladding diameter 250um;
Working temperature: -25~+75℃;
Application scenario: FTTH.
specification:
| Item | Details |
| Insertion loss | AVG≤0.3dB，MAX≤0.5dB |
| Return loss | SM：UPC≥45dB，APC≥50dB |
| Tension strength | ≥30N |
| Mechanical durability | 500 次 |
| Repeated assembly | ≥3 次 |
| Assembly time | ≤2min |
* package list:
Blister Box:Blister box
Gift Box:Carton
Outer pack:Carton
