PRODUCT DETAIL

Support EPON/GPON mode and switch mode automatically

Support Route PPPoE/DHCP/Static IP and Bridge mode

Support IPv4/IPv6 dual mode

Support 2.4G&5.8G WIFI and Multiple SSID

Support LAN IP and DHCP Server configuration

Support Port Mapping and Loop-Detect

Support Firewall function and ACL function

Support IGMP Snooping/Proxy multicast feature

Specialized design for system breakdown prevention to maintain able system

Support TR069 Remote Configuration and maintenance


specification:

Technical itemDetails
PON Interface1 GPON BoB（Class B+）
Receiving sensitivity: ≤-27dBm
Transmitting optical power: +0.5dB~+5dBm
Transmission distance: 20KM
WavelengthTX: 1310nm, RX: 1490nm
Optical InterfaceSC/APC Connector
Design SchemeRTL9607C+RTL8192FR(2.4G)+RTL8812ER(5G) BOB(RTL8290B)
Chip SpecCPU 950MHz, DDR2 128MB
FlashSPI NAND Flash 128MB

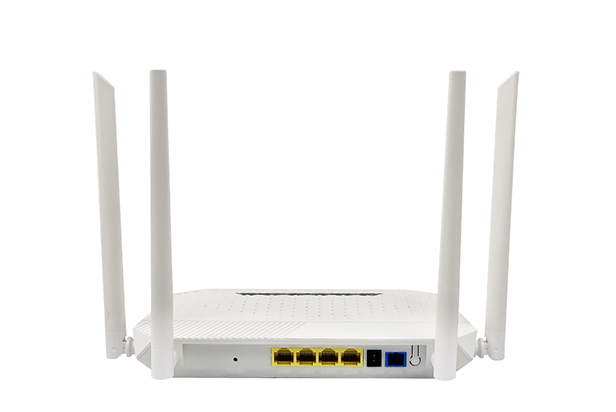

LAN Interface4×10/100/1000Mbps(GE) and 1×10/100Mbps(FE) auto adaptive Ethernet interfaces, Full/Half duplex, RJ45 connector
WirelessCompliant with IEEE802.11b/g/n/ac
2.4G frequency: 2.400-2.4835GHz
5.8G frequency: 5.150-5.825GHz
2.4G 2×2 MIMO, rate up to 300Mbps
5.8G 2×2 MIMO, rate up to 867Mbps
LED9 LED, For Status of PWR、LOS、PON、LAN1、LAN2、2.4G、5.8G、Worn、Normal(CATV)
Push-Button2, For Function of Factory Reset and WPS
Operate ConditionTemperature: 0℃~+50℃
Humidity: 10%～90%（non-condensing）
Storing ConditionTemperature: -30℃~+60℃
Humidity: 10%~90%（non-condensing）
Power SupplyDC 12V/1A
Power Consumption≤6W
Dimension248mm×158mm×192mm（L×W×H）
Net Weight0.3Kg
