PRODUCT DETAIL

Support EPON/GPON mode and switch mode automatically

Support Route PPPoE/DHCP/Static IP and Bridge mode

Support IPv4/IPv6 dual mode

Support 2.4G WIFI and Multiple SSID

Support SIP Proctol for Voip Service

Support LAN IP and DHCP Server configuration

Support Port Mapping and Loop-Detect

Support Firewall function and ACL function

Support IGMP Snooping/Proxy multicast feature

Specialized design for system breakdown prevention to maintain able system

Support TR069 Remote Configuration and maintenance


specification:

Technical itemDetails
PON Interface1 GPON BOB（Bosa on Board）
Receiving sensitivity: ≤-28dBm
Transmitting optical power: +1~+4dBm
Transmission distance: 20KM
WavelengthTX: 1310nm, RX: 1490nm
Optical InterfaceSC/UPC Connector
Design SchemeRTL9602C+RTL8192FR+Si32192 BOB(RTL8290B)
FlashSPI Nor Flash 16MB

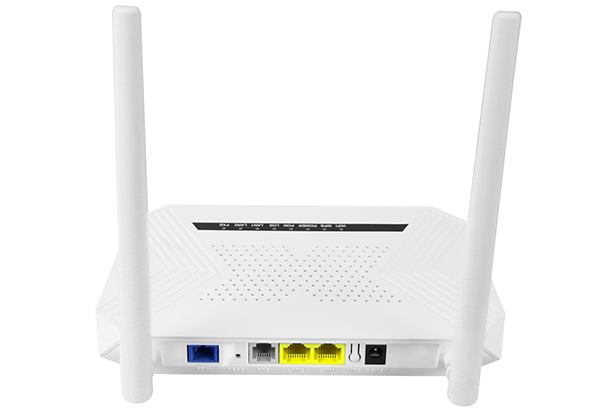

LAN Interface1×10/100/1000Mbps(GE) and 1×10/100Mbps(FE) auto adaptive Ethernet interfaces, Full/Half duplex, RJ45 connector
WirelessCompliant with IEEE802.11b/g/n
Operating frequency: 2.400-2.4835GHz
Support MIMO, rate up to 300Mbps
2T2R, 2 external 5dBi antenna
Support Multiple SSID
Channel: Auto
Modulation type: DSSS, CCK and OFDM
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
POTS interface1 FXS, RJ11 connector
Support: G.711/G.723/G.726/G.729 codec
Support: T.30/T.38/G.711 Fax mode, DTMF Relay
Line testing according to GR-909

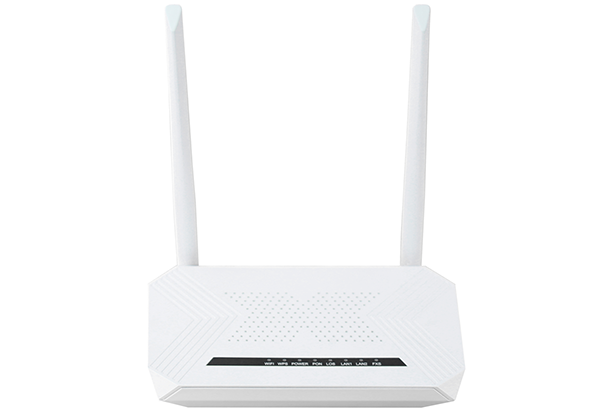

LED8 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN2
Push-Button3, For Function of Reset, WLAN, WPS
Operating ConditionTemperature: 0℃~+50℃
Humidity: 10%～90%（non-condensing）
Storing ConditionTemperature: -30℃~+60℃
Humidity: 10%~90%（non-condensing）
Power SupplyDC 12V/1A
Power Consumption≤6W
Dimension180mm×107mm×28mm（L×W×H）
Net Weight0.24Kg
