PRODUCT DETAIL
Support EPON/GPON mode and switch mode automatically
Support ONU auto-discovery/Link detection/remote upgrade of software
Support Route PPPoE/DHCP/Static IP and Bridge mode
Support IPv4/IPv6 dual mode
Support Firewall function and IGMP multicast feature
Support LAN IP and DHCP Server configuration
Support Port Forwarding and Loop-Detect
Specialized design for system breakdown prevention to maintain able system
Support TR069 Remote Configuration and maintenance
specification:
| Technical item | Details |
| PON Interface | 1 GPON BOB（Bosa on Board） Receiving sensitivity: ≤-28dBm Transmitting optical power: +1~+4dBm Transmission distance: 20KM |
| Wavelength | TX: 1310nm, RX: 1490nm |
| Optical Interface | SC/UPC Connector |
| Chip Spec | RTL9601D, CPU 300MHz, DDR2 32MB |
| Flash | SPI Nor Flash 16MB |
| LAN Interface | 1×10/100/1000Mbps auto adaptive Ethernet interface, RJ45 connector |
| LED | 4 LED, For Status of PWR、LOS、PON、LINK/ACT |
| Push-Button | 2, For Function of Power on/off, Reset |
| Operating Condition | Temperature: 0℃~+50℃ Humidity: 10%～90%（non-condensing） |
| Storing Condition | Temperature: -30℃~+60℃ Humidity: 10%~90%（non-condensing） |
| Power Supply | DC 12V/0.5A |
| Power Consumption | ＜3W |
| Dimension | 120mm×78mm×30mm(L×W×H) |
| Net Weight | 0.13Kg |
Ordering Information:
| Product Name | Product Model | Descriptions |

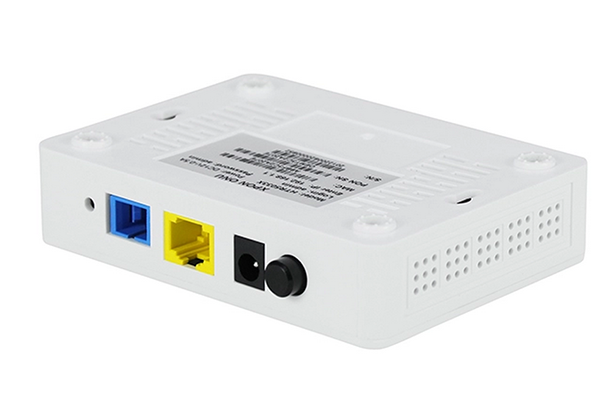

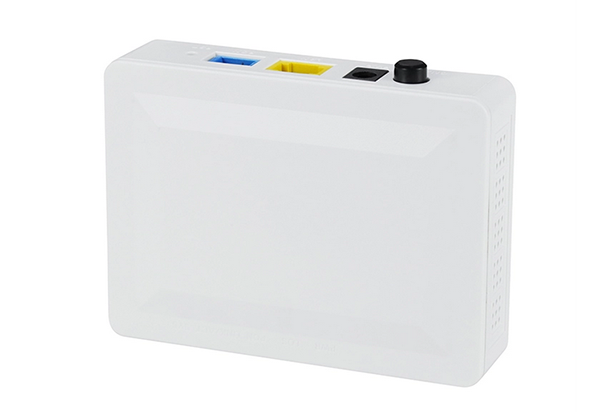

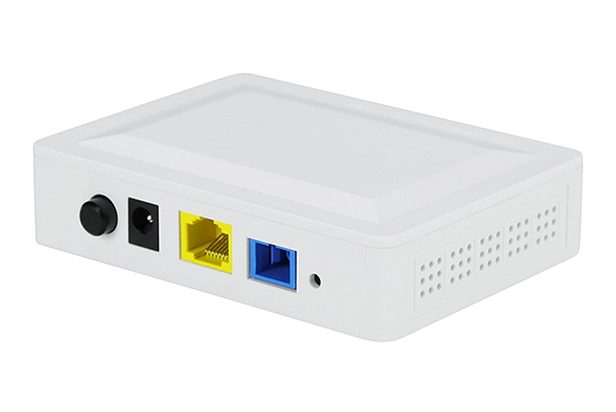

| SFF Type XPON ONU | 1GE | 1×10/100/1000Mbps Ethernet（RJ45）, 1 SC/UPC Connector, Plastic Casing, External power supply adapter |
