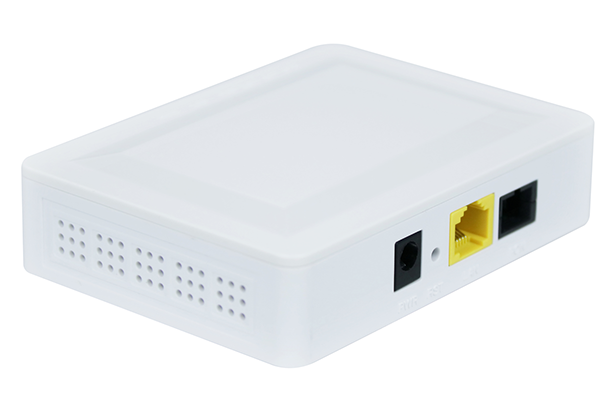

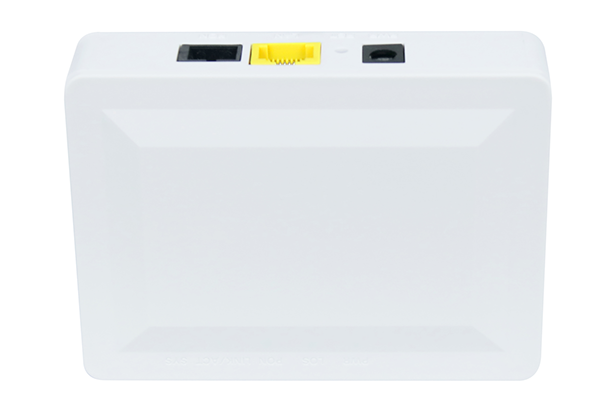

PRODUCT DETAIL
Support EPON mode and switch mode automatically
Support ONU auto-discovery/Link detection/remote upgrade of software
Support Route PPPoE/DHCP/Static IP and Bridge mode
Support IPv4/IPv6
Support Firewall function and IGMP multicast feature
Support LAN IP and DHCP Server configuration
Support Port Forwarding and Loop-Detect
Specialized design for system breakdown prevention to maintain able system
specification:
| Technical item | Details |
| PON Interface | 1 GEPON port(EPON PX20) Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| Wavelength | TX: 1310nm, RX: 1490nm |

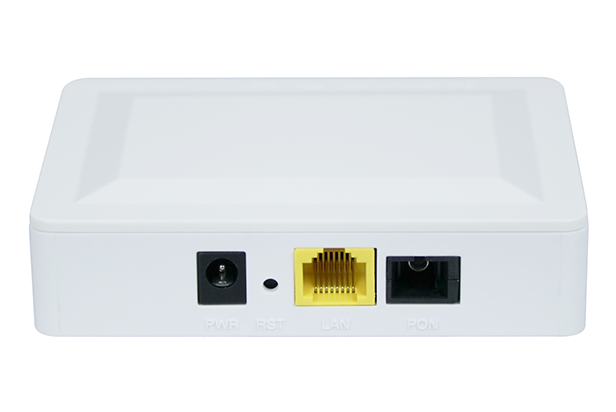

| Optical Interface | SC/UPC Connector |
| LAN Interface | 1×10/100/1000Mbps auto adaptive Ethernet interface, RJ45 connector |
| LED | 4 LED, For Status of PWR、LOS、PON、LINK/ACT |
| Push-Button | 2, For Function of Power on/off, Reset |
| Operating Condition | Temperature: 0℃~+50℃ Humidity: 10%～90%（non-condensing） |
| Storing Condition | Temperature: -30℃~+60℃ Humidity: 10%~90%（non-condensing） |
| Power Supply | DC 12V/0.5A |
| Power Consumption | ＜3W |
| Dimension | 120mm×78mm×30mm(L×W×H) |
| Net Weight | 0.13Kg |
Ordering Information:
| Product Name | Product Model | Descriptions |
| SFF Type EPON ONU | 1GE | 1×10/100/1000Mbps Ethernet（RJ45）, 1 SC/UPC Connector, Plastic Casing, External power supply adapter |
