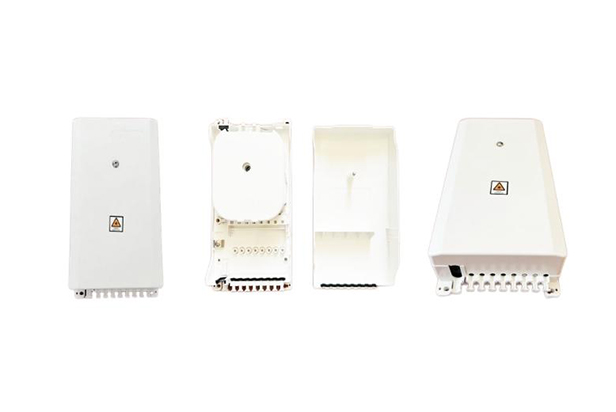

PRODUCT DETAIL

product advantages:

Material: PC+ABS :wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP65

Impact resistant :IK09

Metal accessories material:Stainless steel

Pass test: RoHs、CE、ISO9001

Strong environmental adaptability: -40~+85℃

Installation method:wall-mounted or poled-mounted

Accessories: Users' Manual*1+ Key*1+Accessories Bag * 1

specification:

ItemParameters
Size ( L*W*H)231*125*50MM
Installation Size230*105 MM
Fiber diameter125μm ( 652 & 657 )
Tight cladding diameter250μm & 900μm
Mode of applicationSingle mode & duplex mode
Into the largest cable diameter(mm)1 ports for cables from 8 to 13 mm
Drop cables dimensionsFlat cables: 8 ports with 2.0 x 3.0 mm
End-use temperature-40~+85℃
AdaptorSC or LC
Insertion loss≤0.2dB(1310nm & 1550nm)
output8 SC/LC
Max Capacity8 cores
