PRODUCT DETAIL
Characteristics：
| Parameter | Value |
| Fiber Type | SM G652D/G657A1/G657A2 |
| Cable diameter | 0.9mm+/-0.05 |
| Cable material | LSZH |
| Cable color | White/Yellow |
| Strength member | Polyester yarn |
| Tensile（N） | Long term 3 Short term 6 |
| crush（N/100cm） | Long term 3 Short term 6 |
| Bending Radius(cm) | Dynamic 20 D Static 10 H |
| Attenuation | 1310nm/1550nm≤0.34/0.21 |
Product number:
NOT:

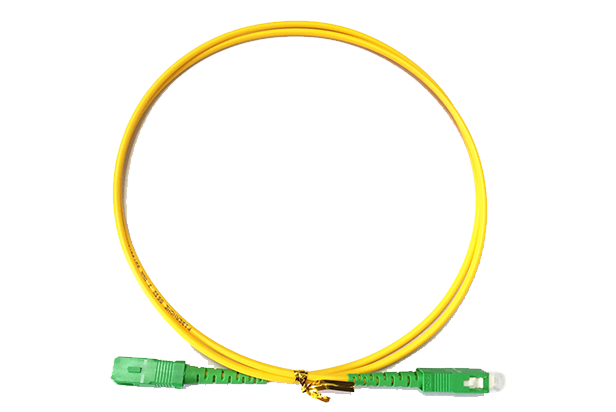

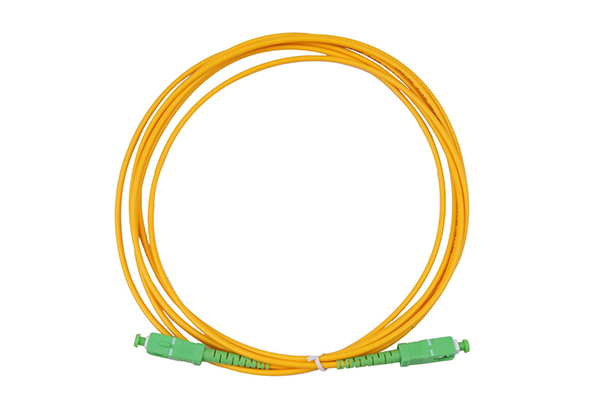

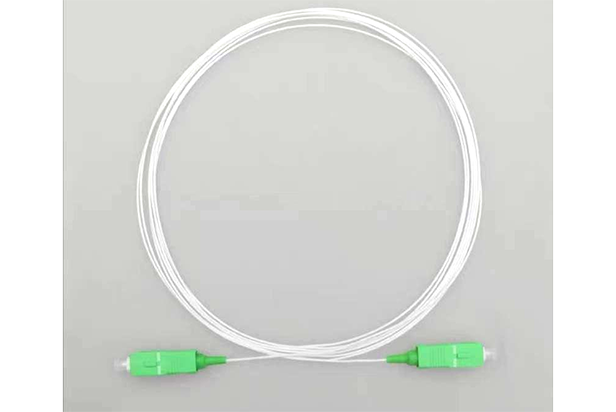

MODEL : PATCHCORD,
Fiber core specification ：9/125
Connector Type：SC/APC-SC/APC
Optical cable type：siTngle core
Cable Diameter ：0.9±0.05mm
Optical fiber model：G657A1
Material for outer sheath of optical cable ：LSZH
LENGTH：1.5m，（1.48-1.55m）
specification:
| Item | Details |
| Insertion Loss | IEC 61300-3-4 |
| Return Loss | IEC61300-3-6 |
| UPC Radius of curvature | 10～ 25mm |
| APC Radius of curvature | 5 ～18mm |
| Apex off set | 0 ～ 60um |
| Optical fiber depression | +50 ～ -100 |
| APC Angle: | 8±0.5° |
| Mechanical properties | Durability：500 times<0.2dB |
| 3D | APC≥70% / UPC≥80% |
