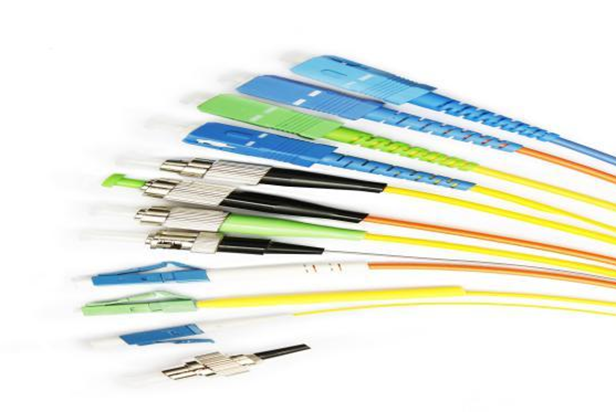

PRODUCT DETAIL
Description:
1.Fiber Type:
SM：G652D、G657A1、G657A2、G657B3
MM:OM1、OM2、OM3、OM4、OM5
2.Connector Type(Simplex/Douplex):
SC/FC/LC/ST/MPO/MTP
3.Patch cord/Pigtail Diameter:
0.9mm/2.0mm/3.0mm
4.Jacket material:
PVC/LSZH
5.Fiber Core:
APC/UPC
6.Cable Diameter:
9/125 um
7.Optical cable type:
Single core/Multi-core
8.Length:
Customized
Features
Low Insertion Loss
High Return Loss
Good Repeatability and Interchangeability
Applications
Long-haul
Metro and Access System
Fiber CATV and Fiber Network System
specification:
| Parameter | Unit | Value | |||
| Connector Type | FC/UPC、FC/APC、SC/UPC、SC/APC、LC/UPC、LC/APC、ST/PC、MPO | ||||
| Fiber Type | Multi-Mode | Single Mode | |||
| Insertion Loss | dB | Typ.≤0.1 Max.≤0.2 | Typ.≤0.1 Max.≤0.3 | ||
| Return Loss(Typ.) | dB | ≥36(no APC connector) | /PC | /UPC | /APC |
| ≥45 | ≥50 | ≥60 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| Connection Durability | times | ≥1000 | |||
| Operating/Storage Temperature | ℃ | -40～+80 | |||
