PRODUCT DETAIL
specification:
| Category | Unit | Specification |
| Aoolicable for | Drop cable.Indoor cable | |
| Fiber mode | Single mode or Multi mode | |
| Operation time | S | About 50(no fiber cut) |
| Insertion Loss | dB | ≤0.25 |
| Insertion Loss Typical value | dB | 0.25 |
| Return Loss | dB | ≥45 |
| Fastening strength of naked fiber | N | ≥5 |
| Tensile strength | N | ≥50 |
| Reusable | Time | ≥10 times |
| Operating Temperature | ℃ | -40～+85 |
| On-line tensile strength(20N) | dB | ΔIL≤0.25 |
| Mechanical durability(500 times) | dB | ΔIL≤0.25 |
| Drop-off test(drop-off height4m,once per direction,totally 3 times) | dB | ΔIL≤0.25 |
| Package Size | Specification Item | Value |
| 16*9.5*2 CM | Size(CM) | 16*9.5*2 |
| QTY(PCS/Box) | 10 | |
| N.W(KG/PCS) | 0.0031 | |
| N.W(KG/Box) | 0.0465 | |
| G.W(KG/Box) | 0.031 | |
| 18.5*14*12 CM | Size(CM) | 18.5*14*12 |

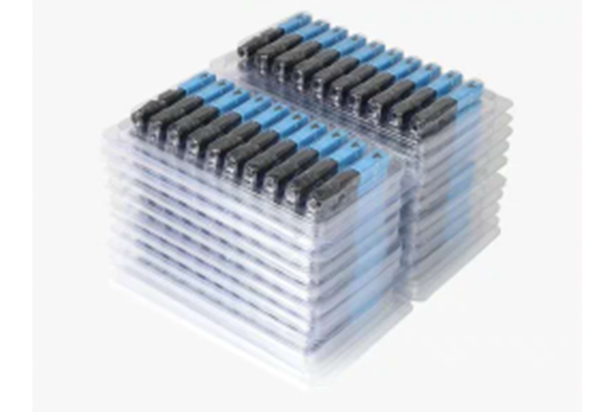

| QTY(Blister Box/Girt Box) | 10 | |
| N.W(KG/Box) | 0.55 | |
| G.W(KG/Box) | 0.52 | |
| 57*32*21 CM | Size(CM) | 57*32*21 |
| QTY(Gift Box/Box) | 10 | |
| QTY(Pcs/Box) | 1000 | |
| N.W(KG/Box) | 11 | |
| G.W(KG/Box) | 10 |
