PRODUCT DETAIL
Product Advantages:
Sleeve in high precision
All material meets RoHS
Low insertion loss
Good repeatability
Good interchangeability
Easy installation
Good temperature stability
Application:
Optical fiber communication system
Cable television network
LAN,WAN
Optical fiber access network
Video transmission
Test equipment

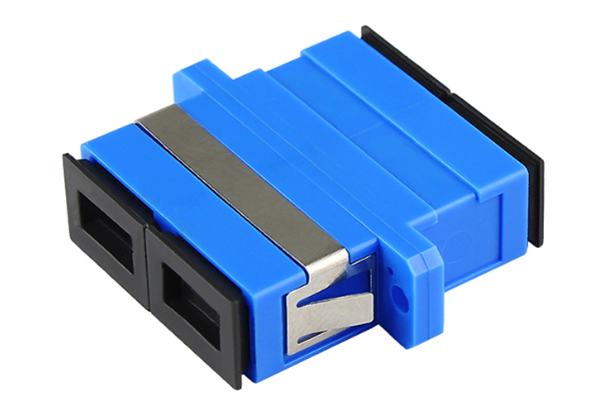

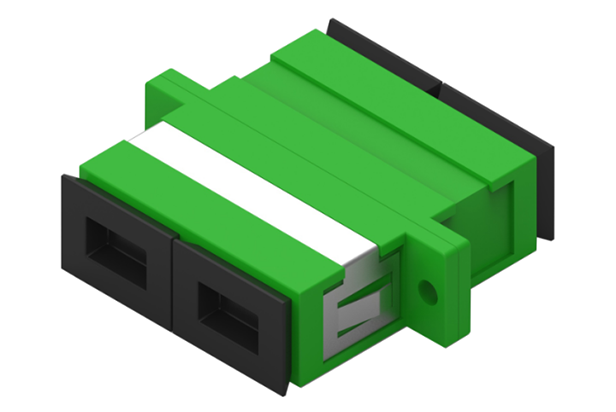

SC Adapter Material Requirements:
| Part Name | QTY | Requirement |
| Body(housing) | 2 | PC/ABS |
| Lining | 4 | PBT |
| Dust cap | 4 | PP |
| Sleeve | 2 | Zirconia Ceramic |
| Shrapnel | 1 | SUS304 |
specification:
| Project | Values |
| Insertion loss | ≤0.2dB |
| IL change absolute value Low temperature | Temperature: -40℃ Duration: 168 h ≤0.2dB |
| High temperature | Temperature: 85℃ Duration: 168 h Temperature change rate: 1℃/min ≤0.2dB |
| Hot and humid | Temperature: 40℃ Humidity: 90%~95% Duration: 168h Temperature change rate: 1℃/min ≤0.2dB |
| Temperature cycle | Temperature: -40℃ to + 85℃ Duration: 168h Cycle times:21 Temperature change rate: 1℃/min ≤0.2dB |
| Repeatability | Insertion pull times:10 ≤0.2dB |
| Mechanism durability | Insertion times: 500 cycles ≤0.2dB |
| Tensile strength Of coupling mechanism | 50N/10 Minute ≤0.2dB |
| Pull-out force | ≤19.6.N |
| Flame resistance | UL94-V0 |
| Work temperature | -25℃～+75℃ |
| Storage temperature | -40℃～+85℃ |
