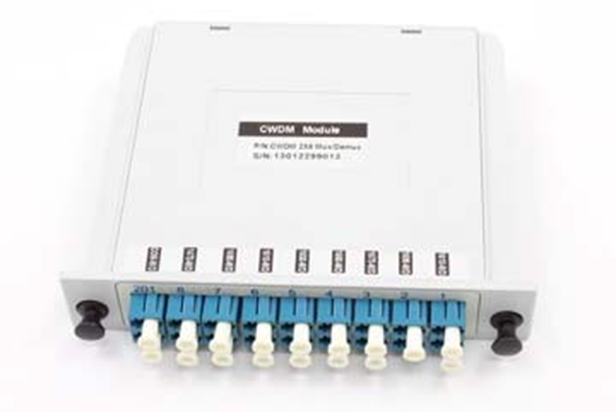

CWDM-Chassis Type

WDM is a communication technology that combines a series of optical signals with different wavelengths and transmits them along a single optical fiber. At the receiving end, the optical signals with different wavelengths are separated by some method. Wavelength division multiplexer uses this technology.

Onlinse Service

Prve

FEEDBACK

Please fill in the form below and our sales team will contact you as soon as possible.

* Name
* Phone
* E-mail
* Company
* Describe
* Code

PRODUCT DETAIL

Adopt dielectric film filter, good wavelength stability

Low insertion loss and high isolation

No glue in the optical path, high performance stability and high temperature stability

Quality complies with Telcordia GR-1221 and GR-1209

specification:

parameter	unit	Performance
Number of channels		2 4 8 16
Working wavelength	nm	1260-1460 或 1460-1620 或 1260-1620
Central wavelength	nm	1271/1291/1311/1331/1351/1371/1391/1411/1431/1451/1471/1491/1511/1531/1551/1571/1591/1611
Channel spacing	nm	20
0.5dB bandwidth	nm	≥14
Passband flatness	dB	≤0.5
Typical insertion loss	dB	0.8 1.3 2.4 4.6
Adjacent channel isolation	dB	≥30
Non-adjacent channel isolation	dB	≥40
Return loss	dB	≥50
Polarization Dependent Loss	dB	≤0.10 ≤0.15 ≤0.20 ≤0.25
Directionality	dB	≥50
Operating temperature	℃	-20~+70
Storage temperature	℃	-40~+85
