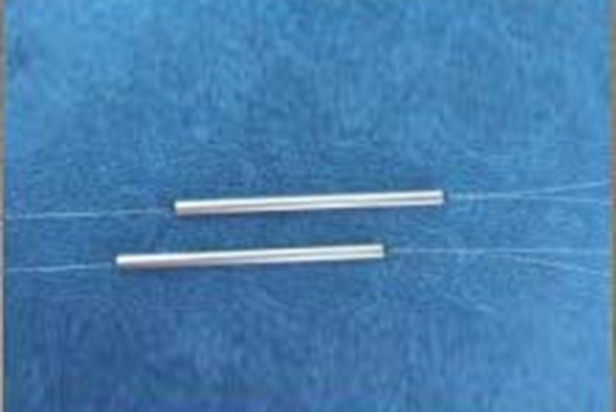

1*2 FBT WDM

WDM is a communication technology that combines a series of optical signals with different wavelengths and transmits them along a single optical fiber. At the receiving end, the optical signals with different wavelengths are separated by some method. Wavelength division multiplexer uses this technology.

Onlinse Service

Prve

FEEDBACK

Please fill in the form below and our sales team will contact you as soon as possible.

* Name
* Phone
* E-mail
* Company
* Describe
* Code

PRODUCT DETAIL

Product Advantages:

Good working bandwidth

Low-loss FWDM

High channel isolation

High stability and reliability

Quality complies with Telcordia GR-1221 and GR-1209

Applications

Line Monitoring

WDM Network

Telecommunication

Cellular Application

Fiber Optical amplifier

Acess Network

Classification by shape：

1*2 FBT type

FWDM

CWDM

DWDM

specification:

Item	Details
Insertion Loss	＜0.6 dB
Return Loss	≥55 dB
Isolation	≥30 dB
Polarization Dependent Loss	＜0.10
Operating wavelength	1310-1550±15 nm
Directionality	≥55dB
Operating temperature	-20~+70℃
Storage temperature	-40~+85℃
