Low Insertion loss

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength: From 1260nm to 1650nm

Wide Operating Temperature: From -40℃ ~ 85℃ High Reliability and Stability

PLC Splitter Type:

Classification by shape：

Mini PLC Splitter

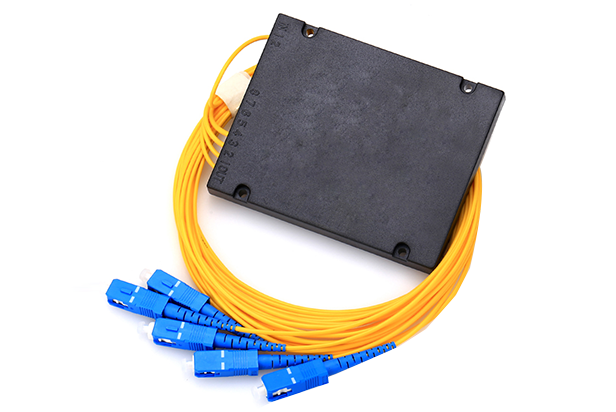

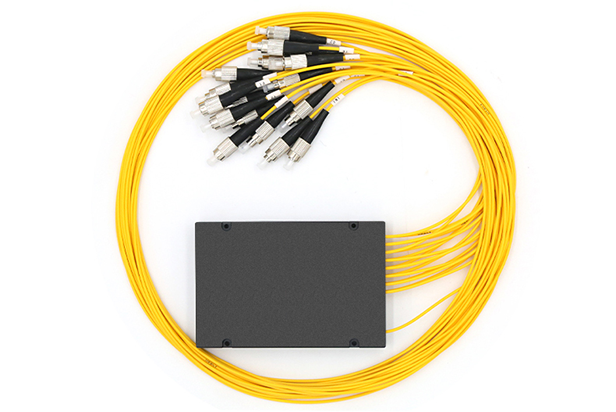

ABS Box PLC Splitter

CHASSIS Type

LGX & Rackmount

Classification by series：

1*2、1*4、1*8、1*16、1*32、1*64、1*126

2*2、2*4、2*8、2*16、2*32、2*64、2*126

Product number:

NOT:

1.5m: Fiber length 1.5m

SC/UPC：Connector type SC/APC

0.9：Fiber diameter is 0.9mm

M：Mini Device

1*16：PLC series

The length of optical fiber can be customized according to the actual requirement.

Connector type：SC/APC、FC/APC、LC/APC、FC/UPC、LC/UPC、ST/UPC

Fiber diameter：0.9mm/2.0mm/3.0mm

PLC Device：Mini/ABS Box

PLC series：1/2*2/3/4/6/8/12/16/32/64/128
