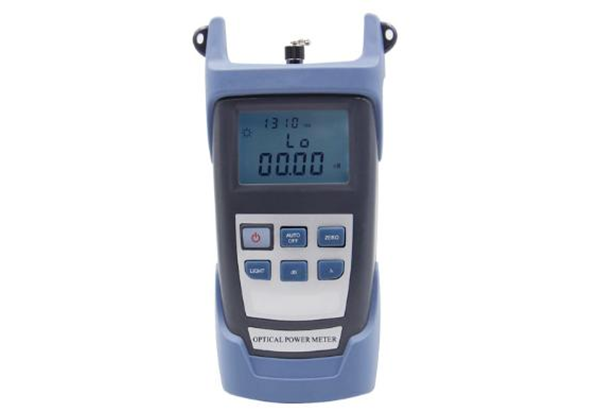

PRODUCT DETAIL
Fast and accurate. No need to wait for warm-up, just plug and play.
Features precise test accuracy, selectable switching display and auto power off. +/- 5% uncertainty, 3 to 70 dBm measurement, relative power calculation, calibration function.
Portable and durable. Sensitive chip and solid internal structure, long service life. Low battery consumption, can work continuously for 48 hours
Clear blue screen. Details mean professionalism, clear results or information display ensures user experience satisfaction. Dust-proof design keeps the connector clean for a long time.
6 wavelengths and light sources. 850/1300/1310/1490/1550/1625 nm+5KM red light locator+SC/FC/ST adapter. Meet most of the needs of CCTV communication engineering maintenance.
Application. In high bandwidth, reliable fiber power equipment is very important. This handheld fiber meter can help check the performance of the cable, calculate the relative power loss, locate faults and troubleshoot.
specification:
| Item | Details |
| Measuring range | -70dBm ~ +10dBm |
| Error | ±0.5 dB |
| Wavelength | 850 nm、980 nm、1300 nm、1310 nm、1490 nm、1550 nm、1625 nm |
| Power display unit | dB、dBm、mW、uW、nW |
| Standby time | 48 hours |
| Display resolution | Linear display: 0.1% |
| Logarithmic display | 0.01dBm |
| Optional connection | SC、FC、ST |
| Automatic switch off time | 10 minutes |
| Power supply | 3 * AA batteries（not included） |
| Weight | 400g |
| Product size | approx. 190×100×48mm , 7.48×3.94×1.89 in |
| Working temperature | -10℃ ~ +60℃ |
| Storage temperature | -25℃ ~ +70℃ |
