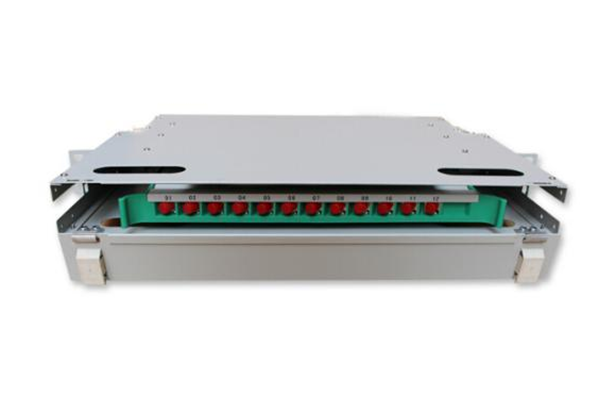

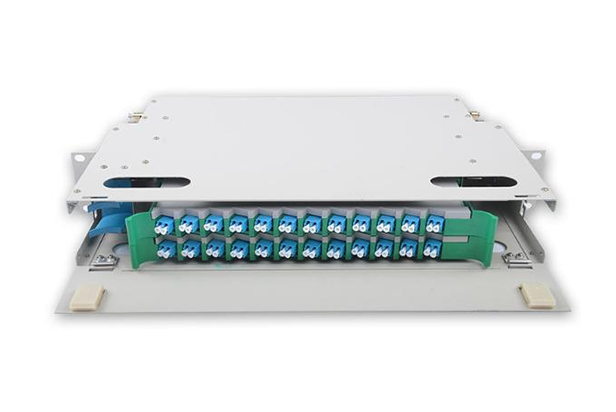

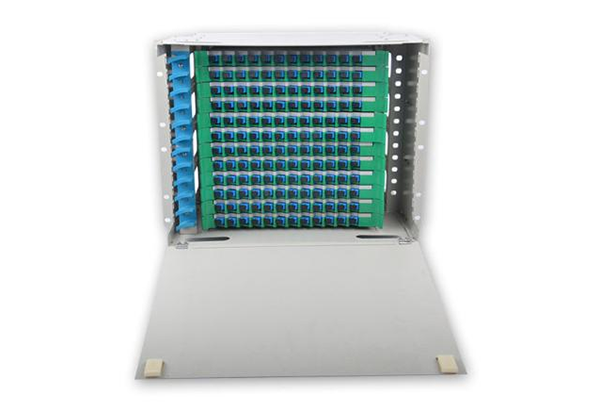

ODF Patch Panel

ODF can protect the fiber core and pigtail of the optical cable. It can be assembled into an optical fiber distribution frame alone, or installed in a cabinet/frame with a digital distribution unit and an audio distribution unit. It constitutes a comprehensive distribution frame. The equipment has flexible configuration, simple installation and use, easy maintenance and management. It is an indispensable device for fiber optic communication cable network terminals or relay points to realize fiber arrangement, fiber jumper cable welding and access.

Onlinse Service

Prve

FEEDBACK

Please fill in the form below and our sales team will contact you as soon as possible.

* Name
* Phone
* E-mail
* Company
* Describe
* Code

PRODUCT DETAIL

19' standard installation, suitable for various racks and cabinets.

Metal, electrostatic spraying. Beautiful appearance, reasonable structure.

All are designed as modules; all operations can be completed on the front of the box. Flexible installation. Easy to operate and maintain.

Inlay installation is convenient, expansion is convenient, and the adapter tilt is 30o

Suitable for ribbon and bundle optical cables.

Each connector tray can clamp 12FC, SC, ST, LC (duplex) adapters.

Plastic structure, light and beautiful

Ensure the bending radius of the jumper to avoid laser burns to the eyes.

A variety of splicing distribution marks to facilitate the product

Order Guide:

Type	High(mm)	Width(mm)	Depth(mm)	Weight(kg)
12-c	43	430	280	3
24-c	63	430	280	4
48-c	130	430	280	5
72-c	174	430	280	7
96-c	219	430	280	9.2
144-c	330	430	280	11.5
288-c	736	430	280	14.6
